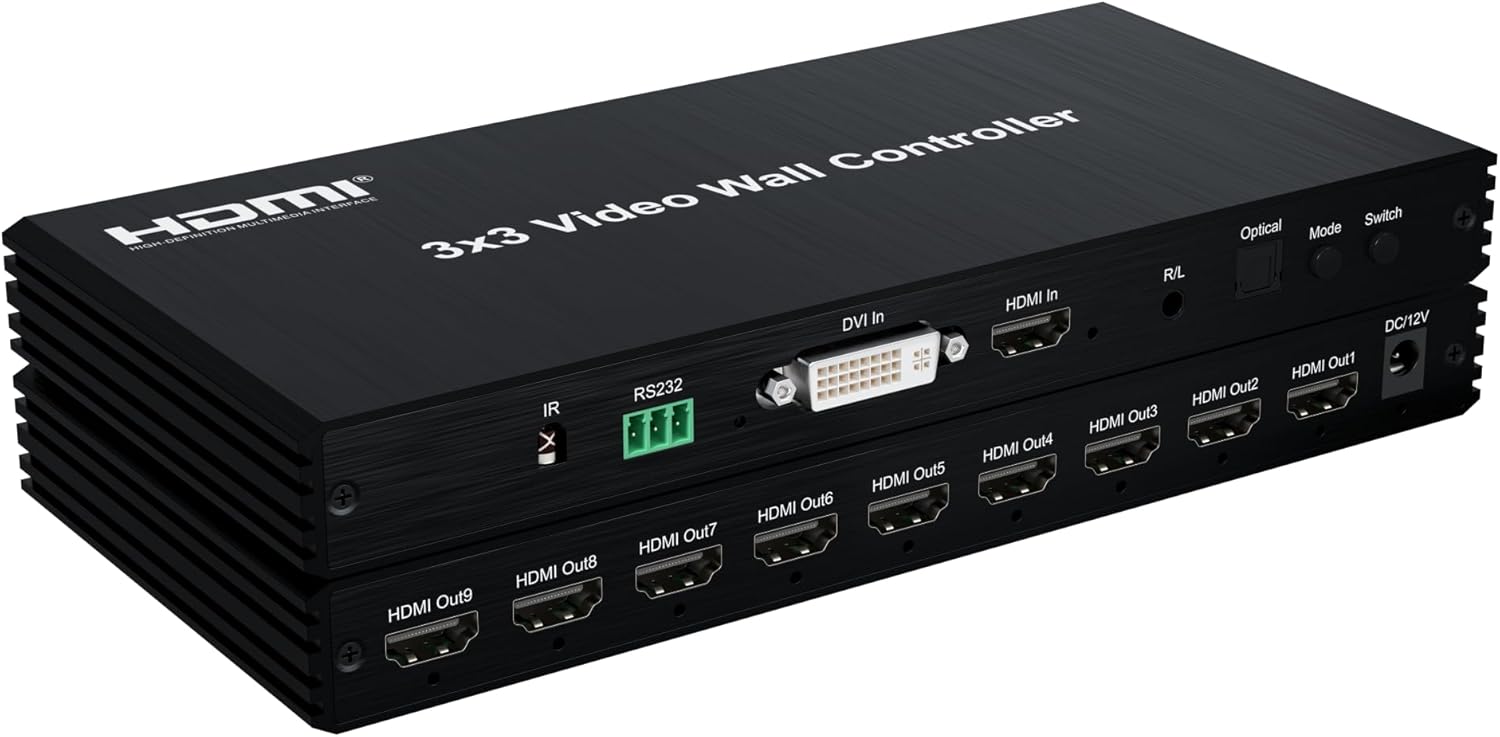

UniQue 3x3 HDMI Video Wall Controller

UniQue 3x3 HDMI Video Wall Controller - 9 HDMI Outputs, 1 HDMI Input, 1 DVI Input, Support RS232 And IR Control, 1920x1080 Output Resolution, 60Hz Refresh Rate, 1080P/720P/576P Input Resolution, 4.95Gbits/s Max Bandwidth, 3.96Gbit/s Transfer Rate, Retail Box, 6 Months Warranty

Product Overview

The UniQue 3x3 Video Wall Controller supports HDMI/DVI input and Nine HDMI outputs with full HD 1080P resolution at 60Hz. It offers multiple splicing modes, power-off memory, and easy plug-and-play operation with RS232/IR control. Designed for efficient video distribution, it handles audio in stereo and supports cable lengths up to 15 meters.

Features

•Support HDMI/DVI video source input;
•Support 9-ways HDMI output;
•With power off memory function;
•Support multiple splicing modes, easy to handle, plug and play;
•Support RS232/IR control.

Specifications

•Product Code: UQ-HVWC3X3
•Description: UniQue 3x3 HDMI Video Wall Controller
•HDMI input resolution: 1080P/720P/576p/576i/480P
•HDMI output resolution: support 1920x1080/60Hz
•Support video formats: RGB,YCbCr444,YCbCr442,YCbCr440
•Support audio formats: Stereo
•Max bandwidth: 4.95Gbit/s(1080P)
•Maximum Transfer Rate: 3.96Gbit/s(1080P)
•Input/output cable length: ?15M,AWG26 HDMI standard cable
•Max working current: 280mA
•Power adapter specifications: input AC (50Hz, 60Hz) 100V-240V Output 12V DC/1A
•Operating temperature range: (-10?? +45?)
